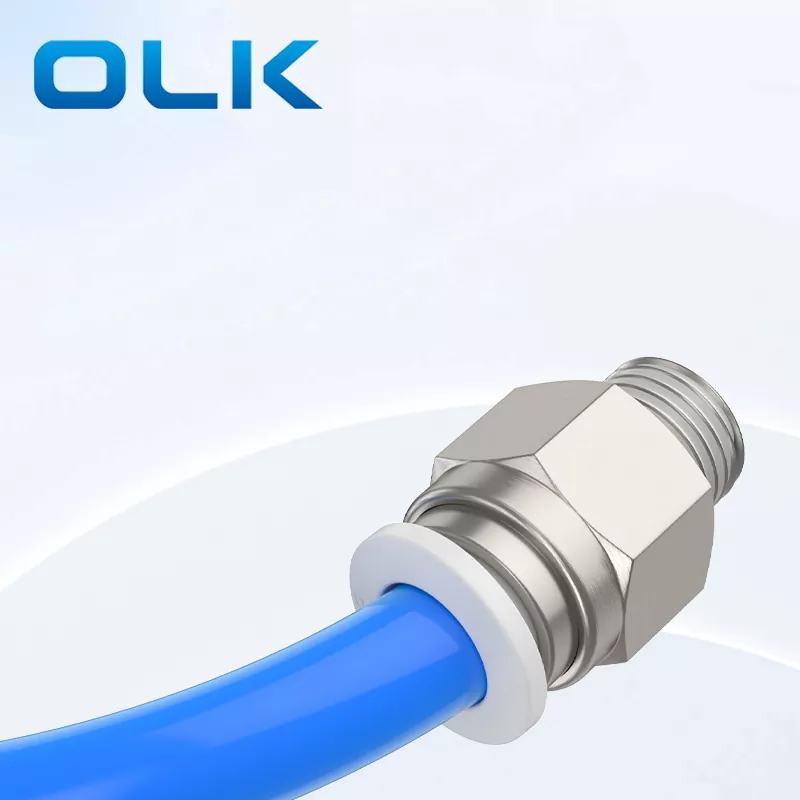

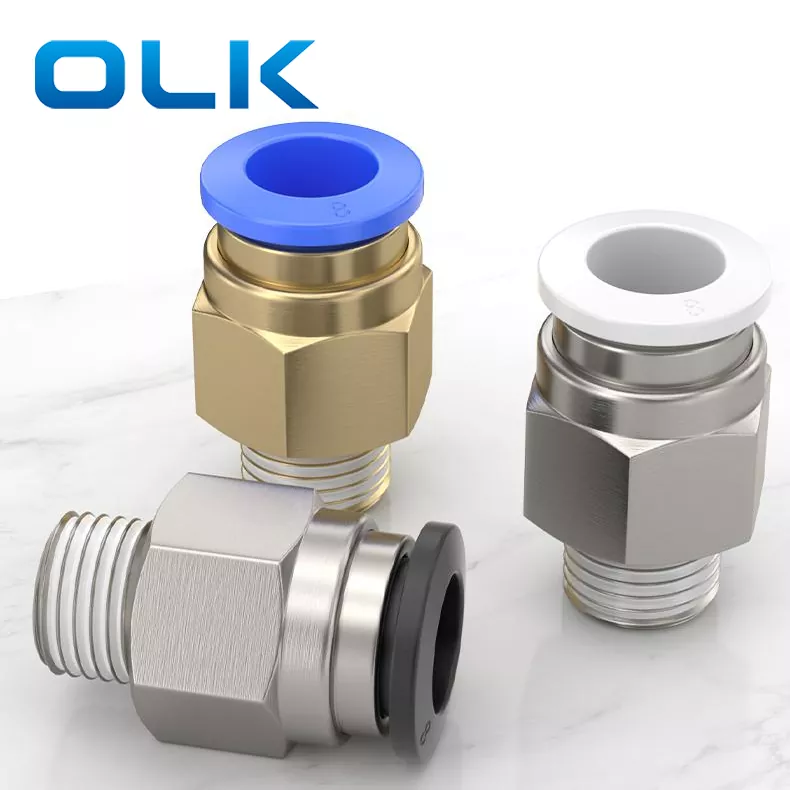

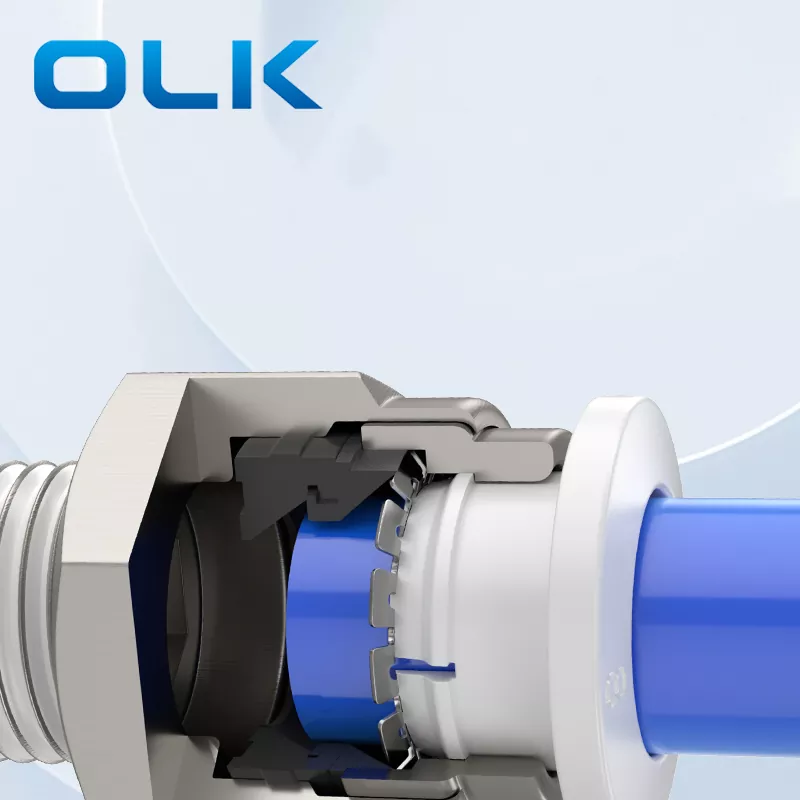

Encaixe de tubo reto de rosca macho PC

Código de pedido

computador

8

--

01

Modelo

Tamanho do tubo (métrico)

Tipo de rosca (rosca de tubo reto de 55°)

4:4mm

01:G1/8

6:6mm

02:G1/4

8:8mm

03:G3/8

10:10mm

04:G1/2

12:12mm

14:14mm

16:16mm

Fluido

Ar/água (condicional)/vácuo

Pressão operacional

0-1,0Mpa

Pressão de vácuo

-100Kpa(10 Torr)

Temperatura operacional

-10-60℃

Material

NYLON (PA), Poliuretano (PU)

Encaixe de tubo em polegadas

Encaixe de tubo métrico

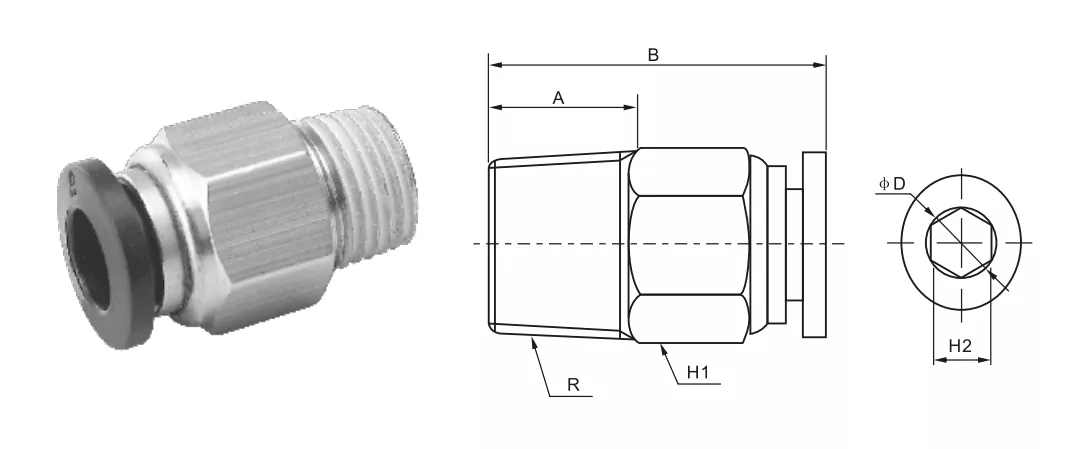

φD

R

A

B

H1

H2

PC5/32-M5

PC4-M5

4

M5

4.5

21.8

10

2

PC5/32-01

PC4-01

4

R1/8

6.5

20.5

10

3

PC5/32-02

PC4-02

4

R1/4

9

19.5

14

3

PC1/4-M5

PC6-M5

6

M5

4.5

22.8

12

2

PC1/4-01

PC6-01

6

R1/8

6.5

22.2

12

4

PC1/4-02

PC6-02

6

R1/4

9

22.2

14

4

PC1/4-03

PC6-03

6

R3/8

10

21.5

17

4

PC1/4-04

PC6-04

6

R1/2

10

23

21

4

PC5/16-01

PC8-01

8

R1/8

8

26.8

14

4

PC5/16-02

PC8-02

8

R1/4

10

25.2

14

6

PC5/16-03

PC8-03

8

R3/8

10

22.2

17

6

PC5/16-04

PC8-04

8

R1/2

11

23.7

21

6

PC3/8-01

PC10-01

10

R1/8

8

30.7

17

4

PC3/8-02

PC10-02

10

R1/4

10

31

17

6

PC3/8-03

PC10-03

10

R3/8

10

29.5

17

8

PC3/8-04

PC10-04

10

R1/2

11

25.2

21

8

PC1/2-01

PC12-01

12

R1/8

8

31.7

19

4

PC1/2-02

PC12-02

12

R1/4

10

33.2

19

6

PC1/2-03

PC12-03

12

R3/8

10

30

19

8

PC1/2-04

PC12-04

12

R1/2

11

30

21

8

PC14-03

14

R3/8

11

38

24

6

PC14-04

14

R1/2

12

39

24

8

PC16-03

16

R3/8

13

39

24

10

PC16-04

16

R1/2

15

39

27

12
